MIMIK UT SERIES LITERATURE

UT SERIES TRACERS


For those who are seeking slide tracers for lathes please contact

CHIYO CO.LTD
Tel : +886-4-22128818
Fax : +886-4-22150198
Email        chiyo@chiyo.com.tw

This firm has 40 years of experience with lathe tracers and currently offers many slide tracer models

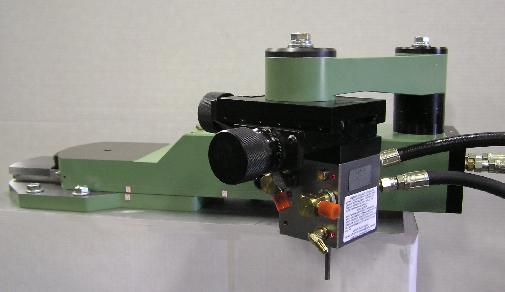

MIMIK UT-6
MIMIK originated the universal tracer (UT).  There are more MIMIK UT's in use today than any other universal tracer on the market.  Many customers find that the MIMIK tracers offer an economical method of repeating production with short setups and little operator training.  The UT series offers models to suit all makes and sizes of lathes.  The UT can be adapted by MIMIK or by the customer to fit nearly all lathes.  MIMIK systems have been manufactured since the 1960's and they are supported by a large inventory of parts.  They are available for front or rear mounting on the cross slide. For front mounts the compound will be removed.  Rear mounts enable the compound to remain on the cross slide. The UT can be used for either cutting the OD or facing.  With the correct adapters the UT can be moved from lathe to lathe to accommodate production.

The UT system consists of the following

1) TRACER SLIDE                                          5) 2 AXIS ADJUSTING SLIDE

Heavy duty slide designed to operate                       This provides precise setup and accu-

at the full capacity of your machine.                         rate depth of cut adjustment.  Zero

                                                                             setting dials graduated .001 or .01mm.

2) MOUNTING ADAPTER                              6) TRACER VALVE

Factory made for your machine.                               Valve responds equally to pressure

                                                                             in 360 degrees.  Helps with steep

                                                                             opposed angles.  Valve will deliver full

                                                                             pump pressure to power side of piston.

3) ADJUSTABLE RETRACT STOP           7) TEMPLATE HOLDER

Limits tracer retraction-helpful in boring.                  Front mount units clamp to V-way.

This can save time in some cases.                         Rear mount units clamp to 36" dovetail

                                                                           bar mounted to bed.

                                                                           Standard template rail is 24" for flat

                                                                           template.  Other lengths and round

                                                                           template holders available at extra cost.



4) PIVOTING VALVE ARM                           8) HYDRAULIC POWER UNIT

Positions the tracer valve at the                              Consists of motor, pump, and reservoir.

template.  Carefully designed to                              Sized to match system requirements.

dampen machine vibration                                      Standard 120v, 1 phase, 60 mhz.  Other

                                                                           voltages available at extra cost.


STANDARD SPECIFICATIONS

MODEL                      UT2               UT3.5              UT4.5               UT6               UT7

STROKE  INCHES        2                    3.5                  4.5                   6                    7

               MM              50                     90                 115                  150               175

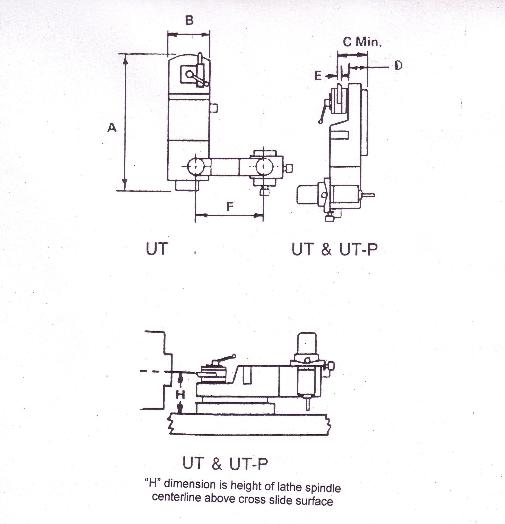

DIMENSIONS    A      13.60               17.38               21.69                28.94           28.94

                                 345                   442                 551                  735               735

                         B      3.00                  4.75               5.37                  6.25              6.25

                                   76                    120                136                  160               160

                         C     2.812                 3.250              4.000               4.870            5.000

                                   71                     83                 101                  127               150

                         D     1.562                 1.810              2.340               2.870            2.870

                                  40                      46                   60                    73                73

                         E      1/2                     3/4                  3/4                     1                  1

                                  12                      19                   19                    25                25

                         F    12.00                   12.00              12.00               12.00            16.00

                                 230                    305                 305                  406               533

WEIGHT       LB        210                     250                 280                  330               350

                    KG         95                     115                 128                  150               160

HYD MOTOR HP        1/2                     1/2                  1/2                   1/2                1/2

PUMP GPM               1.5                     1.5                  1.5                   1.5                1.5

TANK GALLONS         5                         5                   5                       5                  5

PRESSURE PSI         200                    225                 225                  250               275

CUTTING FORCE LB  630                    650                 650                 1120            1120

CYLINDER BORE        2.00                  2.00                2.00                 2.00             2.00

                                   51                      51                  51                    51                51

FITS LATHE SWING   8-14                 12-16               15-20              16-22            18-24

                                 200-350                   300-380                  380-500                400-550            450-600

MINIMUM "H"             3.187                3.625              4.500               5.625           5.875

                                   81                      92                115                   143              149

MAX SPINDLE HP        5                       12                  15                     20               20

MIMIK VALVE             #10                    #10               #10                    #15              #15
