MIMIK 7000 LITERATURE

MIMIK MODEL 7000

TRACES ALL ANGLES

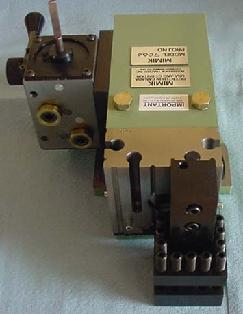

MIMIK Model 7000
MIMIK Model 7000

MIMIK offers Model 7000 which mounts on your lathe compound just like a toolpost.  This is designed as a complete package ready to be mounted on any 9-16 inch (40-43 cm) lathe.  It can be adapted to any size lathe for light duty work.  It can be used to turn or face.


With 4 tool mounting positions you may not need to remove the tracer for normal operation.   Simply order additional tool holders and change as required.


SPECIFICATIONS

TRACER SLIDE

STROKE 1 1/2 INCH (3.81 CM)

CYLINDER BORE 1.50 INCH (3.81 CM)

ADJUSTABLE GIB

AUTOMATIC WAY LUBRICATION



TRACER VALVE



UNIVERSAL STYLUS ACTUATION

STYLUS FORCE 6 OZ (170 gm)

INFEED ADJUSTMENT  0-50 INCH PER MINUTE (0-127 cm)
